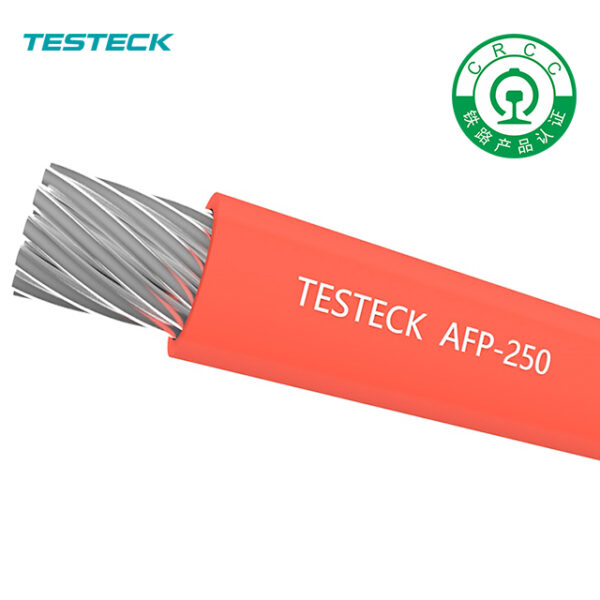

Vehicles/aircraft high-temperature heat-resistant cables small size lightweight wires

Product introduction

Vehicles/aircraft high-temperature heat-resistant cables small size lightweight wires is a high-performance insulated wire. This wire has three insulation layers with a core wire in the middle. Its insulation thickness can be as low as a few microns. At the same time, due to the use of special coated conductors, it achieves low loss and high space coefficient. Compatible, it can greatly reduce the size of electrical equipment using this material, save materials, and significantly reduce costs.

Especially for the motor and transformer industry, reinforced insulated conductors consisting of three layers completely isolate the primary and secondary of the transformer. Therefore, it eliminates barriers, interlayer tapes and insulating tubes in the transformer. In addition to reducing the size of the transformer and saving material costs, its performance can also be improved by reducing the distance between coils.

Specification range: 32AWG–17AWG
Temperature resistance grade: H grade (180℃)

Applications
Various switches, power supplies, transformers, lighting power supplies,New energy vehicles,Cordless mobile phone charging

Product Features:
1. Low loss.
Special conductor structure design, using special coated stranded wire, reduces eddy currents inside the conductor
loss, achieving a smaller conductor outer diameter and excellent weldability; its low loss performance is equivalent to
Litz line reduces unnecessary losses;
2. Three layers of insulation protection, no pinholes;
Multiple layers of insulating coating of different materials eliminate the possibility of pinholes forming.
3. With high insulation voltage, insulating tape and insulation layers can be omitted and the volume can be reduced;
4. The coil is easy to roll, because the surface has a very low friction coefficient, which provides opportunities for automatic high-speed winding.
provides the possibility;
5. Higher temperature level and excellent performance.
Temperature grades include 155°C, 180°C, and 200°C ratings.
6. Easy to peel off.
Due to the use of special coating materials, the conductor is easier to peel off. Can be soldered directly without completely stripping off the insulation layer.

Technical Parameters

Note: Products with other parameters can be customized according to needs
