Rectangular sealing module TSC-M-2/3 Series sealing module
The sealing module is 40mm long and can be easily adapted to cables and pipes of different sizes. It can also be used as a spare redundancy to meet future capacity requirements
GET A QUOTE

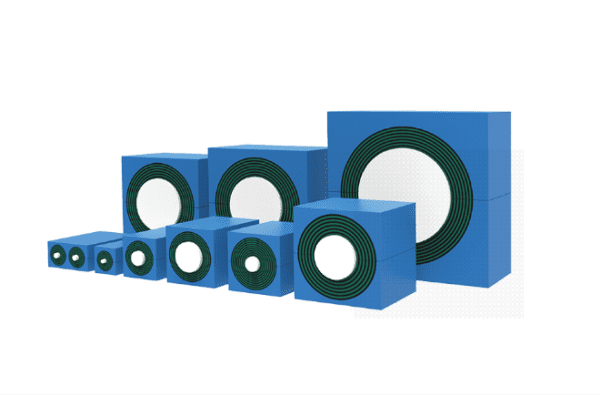

Rectangular sealing module
Product model: TSC-M-2/3 Series sealing module
Product description:
The sealing module is 40mm long and can be easily adapted to cables and pipes of different sizes. It can also be used as a spare redundancy to meet future capacity requirements
Material
Material: EPDM
For cables or pipes with an outer diameter of 3-34.5mm, combined with other corresponding rectangular sealing accessories, it can form a complete sealing system
Specification list
Specification list (unit: mm)
| Model | W | H | L | Ømin | Ømax | Number of channels | Variation range | Mandrel |
| TSC-M15-2/3 | 15 | 15 | 40 | 3 | 11.4 | 1 | 3-11 | Yes |
| TSC-Three-M40/H15-2/3 | 40 | 15 | 40 | 3 | 11.4 | 3 | 3-11 | Yes |
| TSC-M20-2/3 | 20 | 20 | 40 | 3 | 15 | 1 | 3-14.5 | Yes |
| TSC-M30-2/3 | 30 | 30 | 40 | 10.6 | 25 | 1 | 10.6-24.5 | Yes |
| TSC-M40/H30-2/3 | 40 | 30 | 40 | 10.6 | 25 | 1 | 10.6-24.5 | Yes |
| TSC-M40(10) -2/3 | 40 | 40 | 40 | 9.8 | 35 | 1 | 9.8-34.5 | Yes |
| TSC-M40(21)-2/3 | 40 | 40 | 40 | 21 | 35 | 1 | 21-34.5 | Yes |
| TSC-Double-M40-2/3 | 40 | 20 | 40 | 4 | 16 | 2 | 4-15.5 | Yes |
| TSC-Three-M40-2/3 | 40 | 20 | 40 | 4 | 10 | 3 | 4-9.5 | Yes |
| TSC-Four-M40-2/3 | 40 | 20 | 40 | 3.4 | 7 | 4 | 3.4-6.5 | Yes |
