Rectangular bolted frame T SBF/BTB-X+X…X×N-N/M/W (back-to-back type)

GET A QUOTE

Rectangular bolted frame

Sealing system – rectangular

Bolted – rectangular

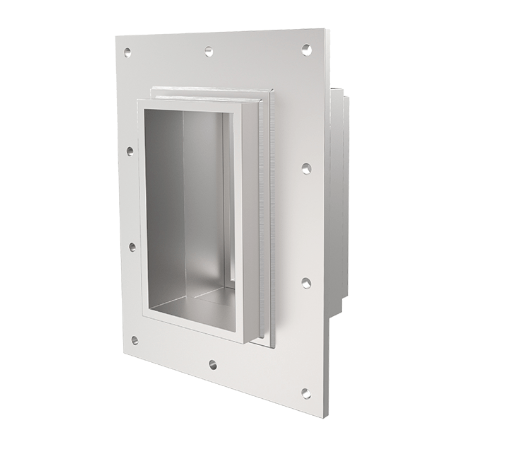

T SBS/BTB-X+X…X×N-N/M/W is a sealing system bolted to a metal or composite panel through a frame flange. It consists of a rectangular back-to-back metal frame with flanges and rectangular sealing accessories. It can install modules on both the front and back sides of the frame. It is suitable for multiple dense cables and pipes of various specifications, and provides higher protection than the sealing system with modules installed on one side

Product model: T SBF/BTB-X+X…X×N-N/M/W (back-to-back type)

Product Description:

A back-to-back metal frame bolted to a metal or composite panel through a frame flange (N/M/W represents different flange widths, 40mm, 60mm, 100mm respectively), which can be equipped with fireproof sealing modules on the front and back sides of the frame to improve its protection capabilities. It is provided in different materials and contains a combination of single or multiple sealing cavity openings in the width and height directions

Material

304, 316L, Q345D (surface spray paint)

Can be bolted to metal or composite panels, and combined with other rectangular sealing accessories such as corresponding sealing pads to form a complete sealing system

Technical indicators

Model	Frame size		Flange size						Opening size
	W0	H0	-N		-M		-W		Wc±5	Hc±5
	W0	H0	W	H	W	H	W	H	Wc±5	Hc±5
T SBF/BTB-2×1-N/M/W-304	160	140	240	220	280	260	360	340	180	160
T SBF/BTB-2×2-N/M/W-304	290	140	370	220	410	260	490	340	310	160
T SBF/BTB-2×3-N/M/W-304	420	140	500	220	540	260	620	340	440	160
T SBF/BTB-2×4-N/M/W-304	550	140	630	220	670	260	750	340	570	160
T SBF/BTB-4×1-N/M/W-304	160	200	240	280	280	320	360	400	180	220
T SBF/BTB-4×2-N/M/W-304	290	200	370	280	410	320	490	400	310	220
T SBF/BTB-4×3-N/M/W-304	420	200	500	280	540	320	620	400	440	220
T SBF/BTB-4×4-N/M/W-304	550	200	630	280	670	320	750	400	570	220
T SBF/BTB-4×5-N/M/W-304	680	200	760	280	800	320	880	400	700	220
T SBF/BTB-4×6-N/M/W-304	810	200	890	280	930	320	1010	400	830	220
T SBF/BTB-6×1-N/M/W-304	160	258	240	338	280	378	360	458	180	278
T SBF/BTB-6×2-N/M/W-304	290	258	370	338	410	378	490	458	310	278
T SBF/BTB-6×3-N/M/W-304	420	258	500	338	540	378	620	458	440	278
T SBF/BTB-6×4-N/M/W-304	550	258	630	338	670	378	750	458	570	278
T SBF/BTB-6×5-N/M/W-304	680	258	760	338	800	378	880	458	700	278
T SBF/BTB-6×6-N/M/W-304	810	258	890	338	930	378	1010	458	830	278
T SBF/BTB-6×7-N/M/W-304	940	258	1020	338	1060	378	1140	458	960	278
T SBF/BTB-6×8-N/M/W-304	1070	258	1150	338	1190	378	1270	458	1090	278
T SBF/BTB-8×1-N/M/W-304	160	318	240	398	280	438	360	518	180	338
T SBF/BTB-8×2-N/M/W-304	290	318	370	398	410	438	490	518	310	338
T SBF/BTB-8×3-N/M/W-304	420	318	500	398	540	438	620	518	440	338
T SBF/BTB-8×4-N/M/W-304	550	318	630	398	670	438	750	518	570	338
T SBF/BTB-8×5-N/M/W-304	680	318	760	398	800	438	880	518	700	338
T SBF/BTB-8×6-N/M/W-304	810	318	890	398	930	438	1010	518	830	338
T SBF/BTB-8×7-N/M/W-304	940	318	1020	398	1060	438	1140	518	960	338
T SBF/BTB-8×8-N/M/W-304	1070	318	1150	398	1190	438	1270	518	1090	338
T SBF/BTB-8×9-N/M/W-304	1200	318	1280	398	1320	438	1400	518	1220	338
T SBF/BTB-8×10-N/M/W-304	1330	318	1410	398	1450	438	1530	518	1350	338
T SBF/BTB-2+2×1-N/M/W-304	160	250	240	330	280	370	360	450	180	270
T SBF/BTB-2+2×2-N/M/W-304	290	250	370	330	410	370	490	450	310	270
T SBF/BTB-2+2×3-N/M/W-304	420	250	500	330	540	370	620	450	440	270
T SBF/BTB-2+2×4-N/M/W-304	550	250	630	330	670	370	750	450	570	270
T SBF/BTB-4+4×1-N/M/W-304	160	370	240	450	280	490	360	570	180	390
T SBF/BTB-4+4×2-N/M/W-304	290	370	370	450	410	490	490	570	310	390
T SBF/BTB-4+4×3-N/M/W-304	420	370	500	450	540	490	620	570	440	390
T SBF/BTB-4+4×4-N/M/W-304	550	370	630	450	670	490	750	570	570	390
T SBF/BTB-4+4×5-N/M/W-304	680	370	760	450	800	490	880	570	700	390
T SBF/BTB-4+4×6-N/M/W-304	810	370	890	450	930	490	1010	570	830	390
T SBF/BTB-6+6×1-N/M/W-304	160	486	240	566	280	606	360	686	180	506
T SBF/BTB-6+6×2-N/M/W-304	290	486	370	566	410	606	490	686	310	506
T SBF/BTB-6+6×3-N/M/W-304	420	486	500	566	540	606	620	686	440	506
T SBF/BTB-6+6×4-N/M/W-304	550	486	630	566	670	606	750	686	570	506
T SBF/BTB-6+6×5-N/M/W-304	680	486	760	566	800	606	880	686	700	506
T SBF/BTB-6+6×6-N/M/W-304	810	486	890	566	930	606	1010	686	830	506
T SBF/BTB-6+6×7-N/M/W-304	940	485	1020	566	1060	606	1140	686	960	506
T SBF/BTB-6+6×8-N/M/W-304	1070	486	1150	566	1190	606	1270	686	1090	506
T SBF/BTB-8+8×1-N/M/W-304	160	606	240	686	280	726	360	806	180	626
T SBF/BTB-8+8×2-N/M/W-304	290	606	370	686	410	726	490	806	310	626
T SBF/BTB-8+8×3-N/M/W-304	420	606	500	686	540	726	620	806	440	626
T SBF/BTB-8+8×4-N/M/W-304	550	606	630	686	670	726	750	806	570	626
T SBF/BTB-8+8×5-N/M/W-304	680	606	760	686	800	726	880	806	700	626
T SBF/BTB-8+8×6-N/M/W-304	810	606	890	686	930	726	1010	806	830	626
T SBF/BTB-8+8×7-N/M/W-304	940	606	1020	686	1060	726	1140	806	960	626
T SBF/BTB-8+8×8-N/M/W-304	1070	606	1150	686	1190	726	1270	806	1090	626
T SBF/BTB-6+6+6×1-N/M/W-304	160	714	240	794	280	834	360	914	180	734
T SBF/BTB-6+6+6×2-N/M/W-304	290	714	370	794	410	834	490	914	310	734
T SBF/BTB-6+6+6×3-N/M/W-304	420	714	500	794	540	834	620	814	440	734
T SBF/BTB-6+6+6×4-N/M/W-304	550	714	630	794	670	834	750	914	570	734
T SBF/BTB-8+8+8×1-N/M/W-304	160	894	240	974	280	1014	360	1094	180	914
T SBF/BTB-8+8+8×2-N/M/W-304	290	894	370	974	410	1014	490	1014	310	914
T SBF/BTB-8+8+8×3-N/M/W-304	420	894	500	974	540	1014	620	1094	440	914
T SBF/BTB-8+8+8×4-N/M/W-304	550	984	630	974	670	1014	750	1094	570	914

Specification list (narrow type) (unit: mm)

Note: The material of the listed model frame is 304. If you need 316L or Q345D material, please change the suffix “304” of the corresponding model to “316L” or “Q345D”

Model	Frame size		Flange size						Opening size
	W0	H0	-N		-M		-W		Wc±5	Hc±5
	W0	H0	W	H	W	H	W	H	Wc±5	Hc±5
T SBF/BTB-1×1-N/M/W-304	100	140	180	220	220	260	300	340	120	160
T SBF/BTB-3×1-N/M/W-304	100	200	180	280	220	320	300	400	120	220
T SBF/BTB-5×1-N/M/W-304	100	258	180	338	220	378	300	458	120	278
T SBF/BTB-7×1-N/M/W-304	100	318	180	398	220	438	300	518	120	338
T SBF/BTB-1+1×1-N/M/W-304	100	250	180	330	220	370	300	450	120	270
T SBF/BTB-3+3×1-N/M/W-304	100	370	180	450	220	490	300	570	120	390
T SBF/BTB-5+5×1-N/M/W-304	100	486	180	566	220	606	300	686	120	506
T SBF/BTB-7+7×1-N/M/W-304	100	606	180	686	220	726	300	806	120	626
